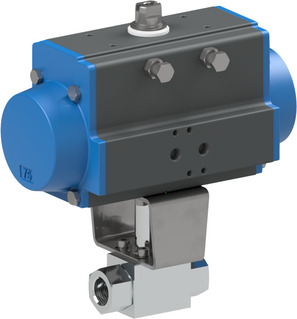

Ball valve with pneumatic actuator BA234-14-S0

Ball valve with pneumatic actuator BA234-14-S0

ball valve with pneumatic actuator series; female thread; body, ball AISI 316Ti/AISI 316L; seals POM/NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 1/4"; nominal diameter 6mm; pressure range 0...500bar; length 69mm; actuator PAS0855

Hochdruckkugelhahn Serie BA234-S0
Hochdruckkugelhahn Serie BA234-S0
Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.08 Kg
Short Itemnumber: BA23414S0
https://www.stasto.eu/web/image/product.template/236890/image_1920?unique=2c328f5

ball valve with pneumatic actuator series; female thread; body, ball AISI 316Ti/AISI 316L; seals POM/NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 1/4"; nominal diameter 6mm; pressure range 0...500bar; length 69mm; actuator PAS0855

939,40 € 939.4 EUR 939,40 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...500 bar
Female thread G 1/4"
DN 6 mm
Length 69 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...500 bar
Female thread G 1/4"
DN 6 mm
Length 69 mm

BA234-14-S0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
BA234-14-B x 1.0 Pcs
BA234-14-B
High pressure ball valve; Female thread; Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; Medium temperature -30...+100°C; For liquids; Flange Bolt circle 36mm, Distance of the mounting holes 18x31,2mm; Square 9mm; G 1/4"; Nominal diameter 6mm; Pressure range 0...500bar; Length 69mm
Pneumatic actuator PAS1005
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
MBNE0703-30 x 1.0 Pcs
MBNE0703-30
Mounting bridge; Material Stainless steel 1.4301; Flange 1 F07; Flange 2 F03 30°; Height 60mm
IV/00088/13 x 1.0 Pcs
IV/00088/13
Bolt; 1.4305; Diameter 20mm; Height of the bolt 55mm; Male square 14mm; Height of the male square 18mm; Female square 9mm; Height of the female square 9mm
