BA234-12L-S0

Price.

767,70 €
STASTO Allgemeine Preisliste (EUR)
High pressure ball valve Series BA234-L/S-S0 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. High pressure ball valve Series BA234-L/S-S0
  6. BA234-12L-S0
BA234-12L-S0

BA234-12L-S0

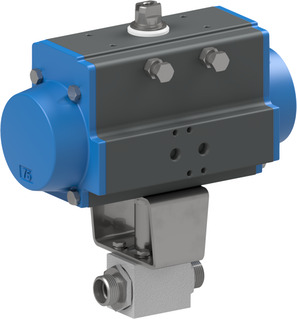

Ball valve with pneumatic actuator; Male thread According to ISO 8434-1 (DIN 2353); Body, Ball 1.4571/1.4404; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+100°C; For liquids; Connection 12L/M18x1,5; Nominal diameter 10mm; Pressure range 0...500bar; Length 74mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.16 Kg
Short Itemnumber:BA23412LS0
https://www.stasto.eu/web/image/product.template/178862/image_1920?unique=94b97ec

ball valve with pneumatic actuator; male thread according to ISO 8434-1 (DIN 2353); body, ball AISI 316Ti/AISI 316L; seals POM/NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+100°C; for liquids; connection 12L/M18x1,5; nominal diameter 10mm; pressure range 0...500bar; length 74mm; actuator PAS1005

767,70 € 767.7 EUR 767,70 €

price on request

  • Male thread
  • DN
  • Length
  • Type
  • Pressure range

This combination does not exist.

Availability:
Contact Us
dimension
Male thread M18x1,5
DN 10 mm
Length 74 mm
Designs
Type 12L
pressure
Pressure range 0...500 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_High pressure ball valve Series BA234-D0_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout - vysokotlaký série BA234-D0_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Højtrykskugleventil Serie BA234-D0_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Hochdruckkugelhahn Serie BA234-D0_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα υψηλής πίεσης Σειρά BA234-D0_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola de alta presión Serie BA234-D0_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Korkeapainekuulaventtiili Sarja BA234-D0_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique haute pression Série BA234-D0_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil za visok tlak Serija BA234-D0_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_magasnyomású gömbcsap sorozat BA234-D0_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera ad alta pressione Serie BA234-D0_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Høytrykkskuleventil Serie BA234-D0_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Hogedrukkogelafsluiter Serie BA234-D0_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy wysokociśnieniowy Seria BA234-D0_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă sferică de înaltă presiune serie BA234-D0_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Visokotlačna krogelna pipa serija BA234-D0_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil za visok pritisak serije BA234-D0_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Högtryckskulventil Serie BA234-D0_SV.pdf
Download
BA234-12L-B x 1.0
BA234-12L-B
High pressure ball valve; Male thread According to ISO 8434-1 (DIN 2353); Body, Ball 1.4571/1.4404; Seals POM/NBR; Medium temperature -30...+100°C; Connection 12L/M18x1,5; Nominal diameter 10mm; Pressure range 0...500bar; Length 74mm, Drilled for mounting an actuator F03, SW9;
Add to Cart
Pneumatic actuator PAS1005
PAS1005 x 1.0
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
Add to Cart
ATSV0703 x 1.0
ATSV0703
Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F03; Height 60mm
Add to Cart
IV/00088/13 x 1.0
IV/00088/13
Bolt; 1.4305; Diameter 20mm; Height of the bolt 55mm; Male square 14mm; Height of the male square 18mm; Female square 9mm; Height of the female square 9mm
