STASTO Allgemeine Preisliste (EUR)

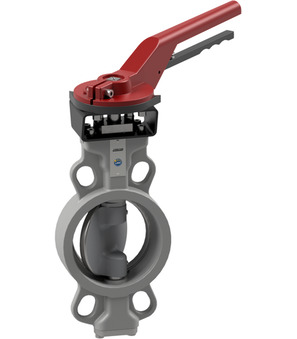

Butterfly valve with hand lever BUW9-080-SSIS-L-A

Butterfly valve with hand lever BUW9-080-SSIS-L-A

Butterfly valve with hand lever Series BUW9-SSIS-L-A; ATEX II 2 G/D Ex h X; Wafer type;Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 80mm; Length 46mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 5.15 Kg
Short Itemnumber: BUW9080SSISLA

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.eu/web/image/product.template/110256/image_1920?unique=eec1610

butterfly valve with hand lever series BUW9-SSIS-L-A; ATEX II 2 G/D Ex h X; wafer type;double eccentric; length according to EN558−1R20; body and disc AISI 316, shaft AISI 630; seat Inconel 625; medium temperature -10...+425°C; pressure range 0...25bar; DN 80mm; length 46mm

1.046,20 € 1046.2 EUR 1.046,20 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Flange
  • Design
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25bar
DN 80 mm
Length 46 mm
Flange PN10/16/25, ANSI150
All specifications (6)
Pressure range 0...25bar
DN 80 mm
Length 46 mm
Flange PN10/16/25, ANSI150
Design ATEX
Brand STASTO
BUW9-080-SSIS-B x 1.0 Pcs
Butterfly valve with bare shaft BUW9-080-SSIS-B
Butterfly valve with bare shaft Series BUW9-SSIS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Nominal flange pressure PN10/16/25/ANSI150
HLBU-040100-A
HLBU-040100-A x 1.0 Pcs
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
