Butterfly valve with hand lever Series BUW9-SSIS-L-A Store

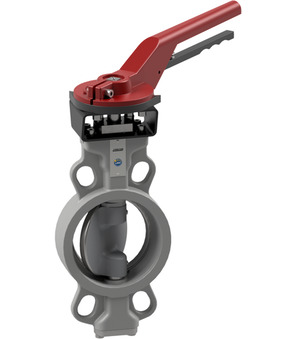

Butterfly valve with hand lever BUW9-050-SSIS-L-A

Name: Butterfly valve with hand lever BUW9-050-SSIS-L-A
Brand: STASTO
SKU: BUW9-050-SSIS-L-A
Price: 810.9 EUR
Availability: InStock

Butterfly valve with hand lever Series BUW9-SSIS-L-A; ATEX II 2 G/D Ex h X; Wafer type;Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 50mm; Length 43mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 3.85 Kg
Short Itemnumber: BUW9050SSISLA

butterfly valve with hand lever series BUW9-SSIS-L-A; ATEX II 2 G/D Ex h X; wafer type;double eccentric; length according to EN558−1R20; body and disc AISI 316, shaft AISI 630; seat Inconel 625; medium temperature -10...+425°C; pressure range 0...25bar; DN 50mm; length 43mm

810,90 € 810.9 EUR 810,90 €

DN
- 50 mm
Length
- 43 mm
Flange
- PN10/16/25, ANSI150
Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	50 mm
Length	43 mm
Flange	PN10/16/25, ANSI150
design
Design	ATEX

BUW9-050-SSIS-B x 1.0

Butterfly valve with bare shaft BUW9-050-SSIS-B

Butterfly valve with bare shaft Series BUW9-SSIS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 50mm; Length 43mm; Nominal flange pressure PN10/16/25/ANSI150

Add to Cart
