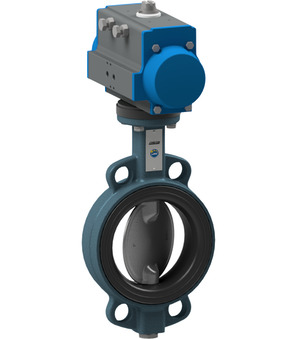

Butterfly valve with pneumatic actuator BUW6-200-DSE-S21

Butterfly valve with pneumatic actuator BUW6-200-DSE-S21

butterfly valve with pneumatic actuator series BUW6-DSE-S2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; medium: water; DN 200mm; length 60mm; actuator PAS1805

Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-S2
Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-S2
Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-S2
Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 56.8 Kg
Short Itemnumber: BUW6200DSES21
https://www.stasto.eu/web/image/product.template/237814/image_1920?unique=5dea311

butterfly valve with pneumatic actuator series BUW6-DSE-S2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; medium: water; DN 200mm; length 60mm; actuator PAS1805

2.593,80 € 2593.8 EUR 2.593,80 €

Not Available For Sale

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 200 mm
Length 60 mm
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 200 mm
Length 60 mm
Brand STASTO

BUW6-200-DSE-S21

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Swedish / Svenska
ZIP

Data Sheets

1
BUW6-200-DSE-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-200-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
Pneumatic actuator PAS1805
PAS1805 x 1.0 Pcs
Pneumatic actuator PAS1805
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 180mm; Flange ISO5211 F10/F14; Female square 36mm; Torque at 5,5bar 262Nm
APKT001000 x 1.0 Pcs
APKT001000
Mounting bracket For butterfly valve; DN200; F14/F12-F14/F10-17-36
