Butterfly valve with manual gear box Series BUW6-CSD-G-3E Store

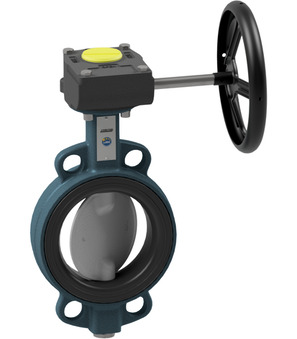

Butterfly valve with manual gear box BUW6-150-CSD-G-3E

Name: Butterfly valve with manual gear box BUW6-150-CSD-G-3E
Brand: STASTO
SKU: BUW6-150-CSD-G-3E

Butterfly valve with manual gear box Series BUW6-CSD-G-3E; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+60°C; Pressure range 0...16bar; Notch impact test; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 150mm; Length 56mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 12.064 Kg
Short Itemnumber: BUW6150CSDG3E

butterfly valve with manual gear box series BUW6-CSD-G-3E; wafer type; DVGW-gas-approved; length according to EN558−1R20; body carbon steel A216-WCB; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -25...+60°C; pressure range 0...16bar; notch impact test; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; DN 150mm; length 56mm

On request

DN
- 150 mm
Length
- 56 mm

This combination does not exist.

Availability:

Specifications
Spare Parts

DN	150 mm
Length	56 mm

BUW6-150-CSD-B-3E x 1.0

Butterfly valve with bare shaft BUW6-150-CSD-B-3E

Butterfly valve with bare shaft Series BUW6-CSD-B-3E; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+60°C; Pressure range 0...16bar; Notch impact test; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 150mm; Length 56mm
