Butterfly valve with hand lever Series BUW6-CSD-L-3E Store

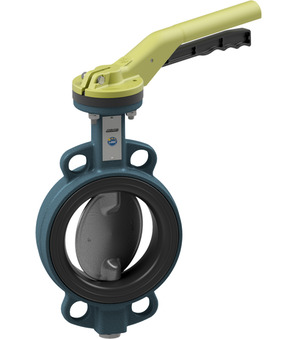

Butterfly valve with hand lever BUW6-080-CSN-L-3E

Name: Butterfly valve with hand lever BUW6-080-CSN-L-3E
Brand: STASTO
SKU: BUW6-080-CSN-L-3E
Price: 342.8 EUR
Availability: InStock

Butterfly valve with hand lever Series BUW6-CSN-L-3E; Wafer type; Length According to EN558−1R20; Body Carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+100°C; Pressure range 0...16bar; Notch impact test; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 80mm; Length 46mm

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW6080CSNL3E

butterfly valve with hand lever series BUW6-CSN-L-3E; wafer type; length according to EN558−1R20; body carbon steel A216-WCB; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -25...+100°C; pressure range 0...16bar; notch impact test; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; DN 80mm; length 46mm

342,80 € 342.8 EUR 342,80 €

DN
- 80 mm
Length
- 46 mm

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

DN	80 mm
Length	46 mm

BUW6-080-CSN-B-3E x 1.0

Butterfly valve with bare shaft BUW6-080-CSN-B-3E

Butterfly valve with bare shaft Series BUW6-CSN-B-3E; Wafer type; Length According to EN558−1R20; Body Carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+100°C; Pressure range 0...16bar; Notch impact test; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 80mm; Length 46mm

Add to Cart
