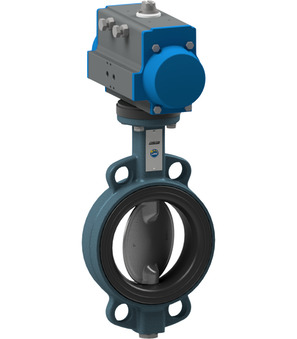

Butterfly valve with pneumatic actuator BUW6-125-DSE-D22-EB0X04YA-C0

Butterfly valve with pneumatic actuator BUW6-125-DSE-D22-EB0X04YA-C0

BUW6-125-DSE-D22
Butterfly valve with pneumatic actuator Series BUW6-DSE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 125mm; Length 56mm; Actuator PAD085
EB0X04YA-C0
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 83161301; Contact material Silver-nickel; Material of case Aluminum; With visual position indicator On/off

Intrastat No.: 84818085
Country of origin: Italy
Weight: 12.14 Kg
Short Itemnumber: BUW6125DSED22EB0X04YAC0
https://www.stasto.eu/web/image/product.template/242757/image_1920?unique=b9bbba7

NWT40-100
profile magnetic cylinder series NWT; according to ISO 15552, VDMA; double acting; pressure range 0,5...10bar; adjustable cushions; diameter 40mm; stroke 100mm; piston rod thread M12x1,25; connection 1/4"; push force at 6 bar 754N

814,00 € 814.0 EUR 814,00 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 125 mm
Length 56 mm
pressure
Pressure range 0...10 bar
characteristics
Actuator PAD085
