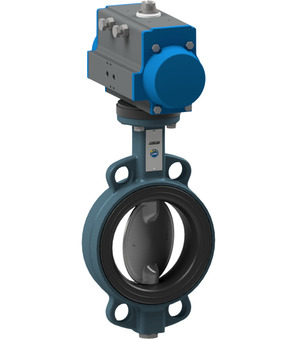

BUW6-100-DSE-D22-ABS54-C001-22-C002-31-LV-1-EB0X13
BUW6-100-DSE-D22
butterfly valve with pneumatic actuator series BUW6-DSE-D2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAD085
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-22
coil type C001; connector size 22mm; voltage 230V/50-60Hz
C002-31-LV-1
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 230VAC/DC
EB0X13
mounted limit switch box; IP65; inductive dual proximity switch, suitable for actuators PAD/PAS052-270; switching capacity 10-30VDC/200mA; switch type P&F NBN3-F25F-E8P; function NO contact PNP; material of case plastic
Country of origin: Italy
Weight: 10.298 Kg
Short Itemnumber: BUW6100DSED22ABS54C00122C00231LV1EB0X13
