Butterfly valve with manual gear box Series BUW4-DSD-G-DVGW Store

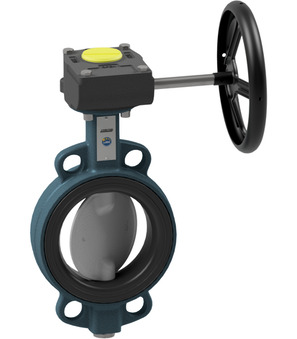

Butterfly valve with manual gear box BUW6-100-DSD-G

Name: Butterfly valve with manual gear box BUW6-100-DSD-G
Brand: STASTO
SKU: BUW6-100-DSD-G
Price: 484.9 EUR
Availability: InStock

Butterfly valve with manual gear box Series BUW4-DSD-G-DVGW; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR ; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 100mm; Length 52mm; Pressure range 0…16bar

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.124 Kg
Short Itemnumber: BUW6100DSDG

butterfly valve with manual gear box series BUW4-DSD-G-DVGW; wafer type; DVGW-gas-approved; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR ; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+60°C; DN 100mm; length 52mm; pressure range 0…16bar

484,90 € 484.9 EUR 484,90 €

DN
- 100 mm
Length
- 52 mm
Pressure range
- 0...16 bar

This combination does not exist.

Availability:

Add to cart

dimension
DN	100 mm
Length	52 mm
pressure
Pressure range	0...16 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BUW6100DSDG.stp

Download
