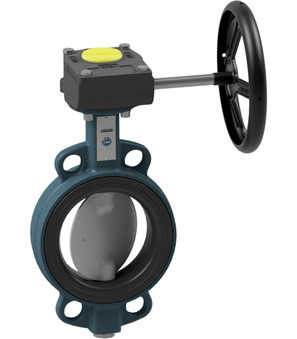

Butterfly valve with manual gear box BUW6-100-DSD-G-A

Butterfly valve with manual gear box BUW6-100-DSD-G-A

Butterfly valve with manual gear box Series BUW4-DSD-G-A-DVGW; ATEX II 2 G/D Ex h X; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR ; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 100mm; Length 52mm; Pressure range 0…16bar

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.124 Kg
Short Itemnumber: BUW6100DSDGA

Scope of delivery

butterfly valve with gear box
https://www.stasto.eu/web/image/product.template/218262/image_1920?unique=406672f

butterfly valve with manual gear box series BUW4-DSD-G-A-DVGW; ATEX II 2 G/D Ex h X; wafer type; DVGW-gas-approved; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR ; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+60°C; DN 100mm; length 52mm; pressure range 0…16bar

484,90 € 484.9 EUR 484,90 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Design
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 100 mm
Length 52 mm
Design ATEX
Pressure range 0...16 bar
DN 100 mm
Length 52 mm
Design ATEX
BUW6-100-DSD-B-A x 1.0 Pcs
Butterfly valve with bare shaft BUW6-100-DSD-B-A
Butterfly valve with bare shaft Series BUW6-DSD-B-A, BUW4-DSD-B-A; ATEX II 2 G/D Ex h X; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 100mm; Length 52mm; Pressure range 0...16bar
GB02-07/11-01
GB02-07/11-01 x 1.0 Pcs
GB02-07/11-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 150Nm; Flange ISO5211 F07; Female square 11mm
