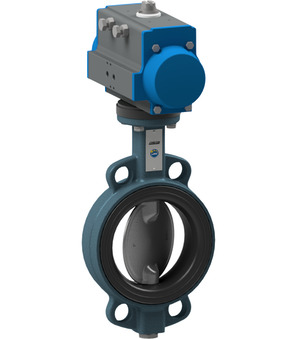

Butterfly valve with pneumatic actuator BUW6-065-DSE-S22

Butterfly valve with pneumatic actuator BUW6-065-DSE-S22

Butterfly valve with pneumatic actuator Series BUW6-DSE-S2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Actuator PAS0855

Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-S2
Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-S2
Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-S2
Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.65 Kg
Short Itemnumber: BUW6065DSES22
https://www.stasto.eu/web/image/product.template/88237/image_1920?unique=fcc32fd

Butterfly valve with pneumatic actuator Series BUW6-DSE-S2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Actuator PAS0855

526,20 € 526.2 EUR 526,20 €

Not Available For Sale

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 65 mm
Length 46 mm
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 65 mm
Length 46 mm
Brand STASTO

BUW6-065-DSE-S22

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
BUW6-065-DSE-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-065-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 65mm; Length 46mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
Pneumatic actuator PAS0855
PAS0855 x 1.0 Pcs
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
MFFALFUAL09733 x 1.0 Pcs
MFFALFUAL09733
Adapter For butterfly valve DN40-DN150; F07/F07
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4606
RI4606
Diameter
85 mm
RI4620
RI4620
Diameter
85 mm
RI4648
RI4648
Diameter
85 mm
