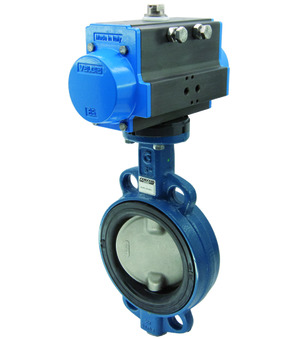

Butterfly valve with pneumatic actuator BUW2-500-DSC-D33-EB0X01

Butterfly valve with pneumatic actuator BUW2-500-DSC-D33-EB0X01

BUW2-500-DSC-D33
butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 500mm; length 127mm; actuator PAD180
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

Intrastat No.: 84818085
Country of origin: Italy
Weight: 176.268 Kg
Short Itemnumber: BUW2500DSCD33EB0X01
https://www.stasto.eu/web/image/product.template/220256/image_1920?unique=50207e5

BUW2-500-DSC-D33
butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 500mm; length 127mm; actuator PAD180
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Diameter
  • Male thread
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Medium temperature

This combination does not exist.

Availability:
Contact Us

Share

dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
Designs
Switch type Crouzet 831613
Electrical key figures
Switching capacity 4A/250VAC-1A/24VDC
materials
Contact material Silver-nickel
Material of case Plastic
