STASTO Allgemeine Preisliste (EUR)

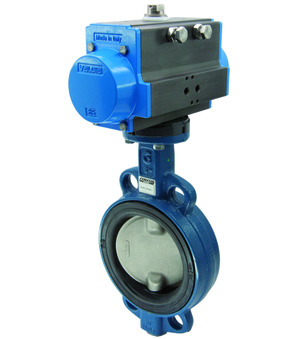

Butterfly valve with bare shaft BUW6-200-ASN-D22

Butterfly valve with bare shaft BUW6-200-ASN-D22

Butterfly valve with bare shaft Series BUW6-ASN-D2; Wafer type; Length According to EN558−1R20; Body Aluminum, Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator PAD125

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 27.19 Kg
Short Itemnumber: BUW6200ASND22
https://www.stasto.eu/web/image/product.template/134929/image_1920?unique=f96ddcc

butterfly valve with bare shaft series BUW6-ASN-D2; wafer type; length according to EN558−1R20; body aluminum, disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...10bar; DN 200mm; length 60mm; actuator PAD125

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Length
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10bar
DN 200 mm
Length 60 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...10bar
DN 200 mm
Length 60 mm

BUW6-200-ASN-D22

Documents

2 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
BUW6-200-ASN-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-200-ASN-B
Butterfly valve with bare shaft Series BUW6-ASN-B; Wafer type; Length According to EN558−1R20; Body Aluminum, Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+100°C; Pressure range 0...10bar; DN 200mm; Length 60mm
Pneumatic actuator PAD125
PAD125 x 1.0 Pcs
Pneumatic actuator PAD125
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 327Nm
APKTGB0049 x 1.0 Pcs
APKTGB0049
Mounting bracket; For damper; DN200; F10/F07-17-22
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4609
RI4609
Diameter
125 mm
RI4623
RI4623
Diameter
125 mm
RI4651
RI4651
Diameter
125 mm
