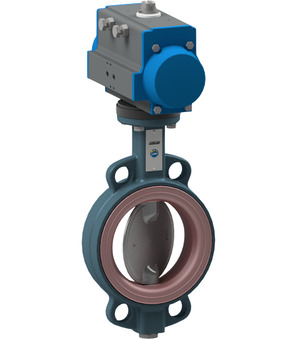

BUW2-250-DSC-D32-EB0X01

Price.

1.687,38 €
Butterfly valve with pneumatic actuator Series BUW2-DSC-D3 Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Butterfly valves - pneumatically operated
  5. Butterfly valve with pneumatic actuator Series BUW2-DSC-D3
  6. BUW2-250-DSC-D32-EB0X01
BUW2-250-DSC-D32-EB0X01
Butterfly valve with pneumatic actuator BUW2-250-DSC-D32
Butterfly valve with pneumatic actuator BUW2-250-DSC-D32
1.589,29 €
1.589,29 €
BUW2-250-DSC-D32-ABS54-C001-03-C002-31-6
BUW2-250-DSC-D32-ABS54-C001-03-C002-31-6
1.752,99 €
1.752,99 €

BUW2-250-DSC-D32-EB0X01

BUW2-250-DSC-D32
butterfly valve with pneumatic actuator series BUW2-DSC-D3; wafer type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 250mm; length 68mm; actuator PAD115
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

Intrastat No.: 84818085
Country of origin: Italy
Weight: 31.808 Kg
Short Itemnumber:BUW2250DSCD32EB0X01
https://www.stasto.eu/web/image/product.template/220531/image_1920?unique=350e5f7

BUW2-250-DSC-D32
butterfly valve with pneumatic actuator series BUW2-DSC-D3; wafer type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 250mm; length 68mm; actuator PAD115
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

1.687,38 € 1687.38 EUR 1.687,38 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us
dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
DN 250 mm
Length 68 mm
Designs
Switch type Crouzet 831613
Electrical key figures
Switching capacity 4A/250VAC-1A/24VDC
pressure
Pressure range 0...6 bar
materials
Contact material Silver-nickel
Material of case Plastic
characteristics
Actuator PAD115
