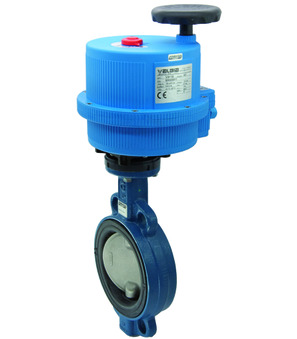

Butterfly valve with electrical actuator BUW2-200-DSE-0T2

Butterfly valve with electrical actuator BUW2-200-DSE-0T2

Butterfly valve with electrical actuator Series BUW2-DSE-0; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 200mm; Length 60mm; Operating time 27s; Voltage 100-240VAC; Actuator VB110H

Intrastat No.: 84818085
Country of origin: Italy
Weight: 19.89 Kg
Short Itemnumber: BUW2200DSE0T2
https://www.stasto.eu/web/image/product.template/137721/image_1920?unique=c096d6d

butterfly valve with electrical actuator series BUW2-DSE-0; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...6bar; DN 200mm; length 60mm; operating time 27s; voltage 100-240VAC; actuator VB110H

1.300,50 € 1300.5 EUR 1.300,50 €

price on request

  • DN
  • Length
  • Voltage
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 200 mm
Length 60 mm
Electrical key figures
Voltage 100-240VAC
characteristics
Actuator VB110H
Operating time 27 s
BUW2-200-DSE-B x 1.0
Butterfly valve with bare shaft BUW2-200-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Flange PN10/16/ANSI150
Add to Cart
Electrical actuator VB110-H
VB110-H x 1.0
Electrical actuator VB110-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
