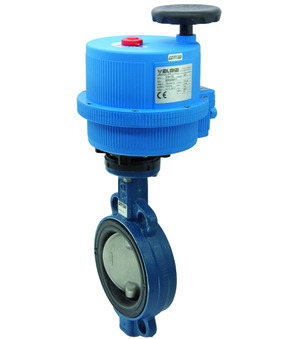

Butterfly valve with electrical actuator BUW2-200-DSE-0GE-YA

Butterfly valve with electrical actuator BUW2-200-DSE-0GE-YA

Butterfly valve with electrical actuator, Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Operating time 15s; Voltage 100-240VAC; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP68; CSA-Certified

Intrastat No.: 84818085
Country of origin: France
Weight: 133.14 Kg
Short Itemnumber: BUW2200DSE0GEYA
https://www.stasto.eu/web/image/product.template/213820/image_1920?unique=a35f8f2

butterfly valve with electrical actuator, wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 200mm; length 60mm; operating time 15s; voltage 100-240VAC; 2 potential-free contacts for end position feedback; incl. manual emergency override; protection class IP68; CSA-certified

1.910,10 € 1910.1 EUR 1.910,10 €

price on request

  • DN
  • Length
  • Voltage
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 200 mm
Length 60 mm
Electrical key figures
Voltage 100-240VAC
characteristics
Actuator VB110H
Operating time 27 s
BUW2-200-DSE-B x 1.0
Butterfly valve with bare shaft BUW2-200-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Flange PN10/16/ANSI150
Add to Cart
VS100-0F15-Q22 x 1.0
VS100-0F15-Q22
Electrical actuator; Suitable for Valves with 90° operation; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 100Nm; Operating time 15sec; Flange ISO5211 F07/F10-star 22mm; Voltage 100-240V AC; Protection class IP67; CSA-Certified
