Butterfly valve with hand lever Series BULY-DSE-L Store

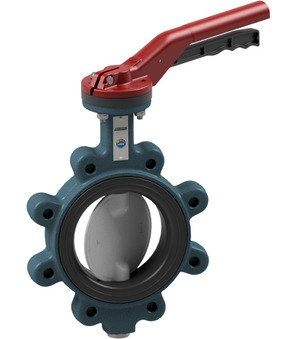

Butterfly valve with hand lever BULY-080-DSE-L

Name: Butterfly valve with hand lever BULY-080-DSE-L
Brand: STASTO
SKU: BULY-080-DSE-L
Price: 206.2 EUR
Availability: InStock

Butterfly valve with hand lever Series BULY-DSE-L; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Flange ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Weight: 6.45 Kg
Short Itemnumber: BULY080DSEL

butterfly valve with hand lever series BULY-DSE-L; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 80mm; length 46mm; pressure range 0…16bar; flange ANSI150

206,20 € 206.2 EUR 206,20 €

DN
- 80 mm
Length
- 46 mm
Flange
- ANSI150
Pressure range
- 0...16 bar

This combination does not exist.

Availability:

Add to cart

dimension
DN	80 mm
Length	46 mm
Flange	ANSI150
pressure
Pressure range	0...16 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BULY080DSEL.stp

Download

BULY-080-DSE-B x 1.0

Butterfly valve with bare shaft BULY-080-DSE-B

Butterfly valve with bare shaft Series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Nominal flange pressure ANSI150

Add to Cart
