STASTO Allgemeine Preisliste (EUR)
Butterfly valve with hand lever Series BULY-DSE-L Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Other materiales - A04
  5. Butterfly valve with hand lever Series BULY-DSE-L
  6. BULY-065-DSE-L

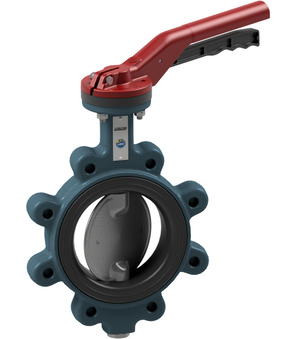

Butterfly valve with hand lever BULY-065-DSE-L

Butterfly valve with hand lever BULY-065-DSE-L

Butterfly valve with hand lever Series BULY-L, BULC; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 65mm; Length 46mm; Pressure range 0-16bar; Flange ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULY065DSEL
https://www.stasto.eu/web/image/product.template/182277/image_1920?unique=b9bbba7

butterfly valve with hand lever series BULY-L, BULC; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 65mm; length 46mm; pressure range 0-16bar; flange ANSI150

176,70 € 176.7 EUR 176,70 €

price on request

  • DN
  • Length
  • Flange
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 65 mm
Length 46 mm
Flange PN10/16
pressure
Pressure range 0...16 bar
BULY-065-DSE-B x 1.0
Butterfly valve with bare shaft BULY-065-DSE-B
Butterfly valve with bare shaft Series BULA-B, BULG-B, BULC-B, BULY-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 65mm; Length 46mm; Pressure range 0…16bar; Flange ANSI150
Add to Cart
HLBU-040100-A
HLBU-040100-A x 1.0
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
