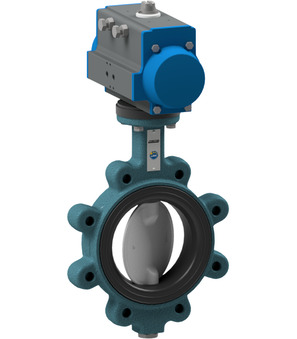

Butterfly valve with pneumatic actuator BULG-125-DSN-S22-ABS54-C001-03-C002-31-LV-1

Butterfly valve with pneumatic actuator BULG-125-DSN-S22-ABS54-C001-03-C002-31-LV-1

BULG-125-DSN-S22
butterfly valve with pneumatic actuator; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 125mm; length 56mm; flange PN10/16; actuator PAS1255
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-1
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 230VAC/DC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 24.41 Kg
Short Itemnumber: BULG125DSNS22ABS54C00103C00231LV1
https://www.stasto.eu/web/image/product.template/232738/image_1920?unique=b9bbba7

BULG-125-DSN-S22
butterfly valve with pneumatic actuator; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 125mm; length 56mm; flange PN10/16; actuator PAS1255
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-1
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 230VAC/DC

1.175,80 € 1175.8 EUR 1.175,80 €

price on request

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
Valve interface Namur 1/4"
Designs
Connector size 22
design
Design With integrated LED-yellow and VDR
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
characteristics
Coil C001
Actuator PAD
Actuator 2 PAS
