STASTO Allgemeine Preisliste (EUR)
Butterfly valve with pneumatic actuator Series BULG-S, BULC-S Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Butterfly valves - pneumatically operated
  5. Butterfly valve with pneumatic actuator Series BULG-S, BULC-S
  6. BULG-125-DSE-S22

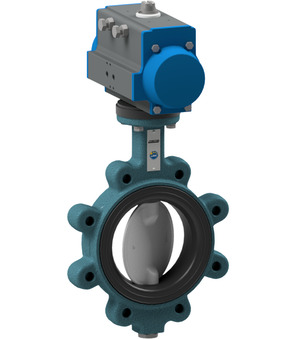

Butterfly valve with pneumatic actuator BULG-125-DSE-S22

Butterfly valve with pneumatic actuator BULG-125-DSE-S22

Butterfly valve with pneumatic actuator Series BULG-S, BULC-S; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 125mm; Length 56mm; Flange PN10/16; Actuator PAS1255

Intrastat No.: 84818085
Country of origin: Italy
Weight: 23.95 Kg
Short Itemnumber: BULG125DSES22
https://www.stasto.eu/web/image/product.template/88112/image_1920?unique=b9bbba7

Butterfly valve with pneumatic actuator Series BULG-S, BULC-S; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 125mm; Length 56mm; Flange PN10/16; Actuator PAS1255

1.005,60 € 1005.6 EUR 1.005,60 €

price on request

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 125 mm
Length 56 mm
Flange PN10/16
pressure
Pressure range 0...10 bar
characteristics
Actuator PAS1255

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Butterfly valve with pneumatic actuator Series BULG-S, BULC-S_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Butterfly valve with pneumatic actuator Series BULG-S, BULC-S_EN.pdf
Download
CAD / 3D
1
CADSTEP_BULG125DSES22.stp
Download

ZIP
Datové listy
1
Datový list_uzavírací klapka s otočným pneumatickým pohonem série BULG-S, BULC-S_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjældventil med pneumatisk drejedrev Serie BULG-S, BULC-S_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Druckluftdrehantrieb Serie BULG-S, BULC-S_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Absperrklappe mit Druckluftdrehantrieb Serie BULG-S, BULC-S_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Πεταλούδα απομόνωσης με πνευματικό περιστροφικό ενεργοποιητή Σειρά BULG-S, BULC-S_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de mariposa con actuador rotativo neumático Serie BULG-S, BULC-S_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Sulkuventtiili pneumaattisella kääntötoimilaitteella Sarja BULG-S, BULC-S_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne papillon avec actionneur rotatif pneumatique Série BULG-S, BULC-S_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Leptir ventil s pneumatskim rotacijskim pogonom Serija BULG-S, BULC-S_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BULG-S, BULC-S_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BULG-S, BULC-S_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Serranda di intercettazione con attuatore pneumatico rotativo Serie BULG-S, BULC-S_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjeldventil med pneumatisk dreieaktuator Serie BULG-S, BULC-S_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Vlinderklep met pneumatische draaiaandrijving Serie BULG-S, BULC-S_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z napędem pneumatycznym Seria BULG-S, BULC-S_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_przepustnica z napędem pneumatycznym Seria BULG-S, BULC-S_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă fluture cu actuator rotativ pneumatic serie BULG-S, BULC-S_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BULG-S, BULC-S_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BULG-S, BULC-S_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa pneumatskim aktuatorom serije BULG-S, BULC-S_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_leptir ventil sa pneumatskim aktuatorom serije BULG-S, BULC-S_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjällventil med pneumatiskt vriddon Serie BULG-S, BULC-S_SV.pdf
Download
BULG-125-DSE-B x 1.0
Butterfly valve with bare shaft BULG-125-DSE-B
Butterfly valve with bare shaft Series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 125mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure PN10/16
Add to Cart
Pneumatic actuator PAS1255
PAS1255 x 1.0
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
Add to Cart
