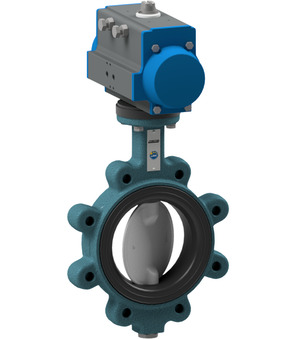

Butterfly valve with pneumatic actuator BULG-125-DPE-D22

Butterfly valve with pneumatic actuator BULG-125-DPE-D22

Butterfly valve with pneumatic actuator Series BULG-D, BULC-D; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 125mm; Length 56mm; Flange PN10/16; Disc GGG40 verzinkt; Actuator PAD085

Absperrklappe mit Druckluftdrehantrieb Serie BULG-D, BULC-D
Absperrklappe mit Druckluftdrehantrieb Serie BULG-D, BULC-D
Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 13.74 Kg
Short Itemnumber: BULG125DPED22
https://www.stasto.eu/web/image/product.template/88104/image_1920?unique=fcc32fd

Butterfly valve with pneumatic actuator Series BULG-D, BULC-D; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 125mm; Length 56mm; Flange PN10/16; Disc GGG40 verzinkt; Actuator PAD085

559,00 € 559.0 EUR 559,00 €

Not Available For Sale

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Disc
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 125 mm
Length 56 mm
Flange PN10/16
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 125 mm
Length 56 mm
Flange PN10/16
Disc GGG40 Zinc plated
Brand STASTO

BULG-125-DPE-D22

Documents

4 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
BULG-125-DPE-B x 1.0 Pcs
Butterfly valve with bare shaft BULG-125-DPE-B
Butterfly valve with bare shaft Series BUL1-DPE-B, BULA-DPE-B, BULG-DPE-B, BULC-DPE-B, BULU-DPE-B, BULY-DPE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 125mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure PN10/16; Disc GGG40 verzinkt
Pneumatic actuator PAD085
PAD085 x 1.0 Pcs
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
MFFALFUAL09733 x 1.0 Pcs
MFFALFUAL09733
Adapter For butterfly valve DN40-DN150; F07/F07
