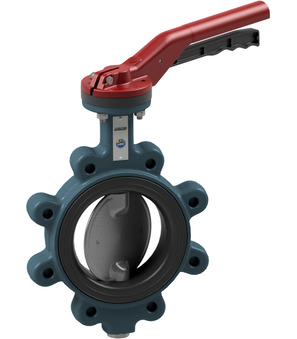

Butterfly valve with hand lever Series BUL1-L; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN6; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 100mm; Length 52mm
Country of origin: Italy
Weight: 0.61 Kg
Short Itemnumber: BUL1100DSEL
Scope of delivery
butterfly valve with hand lever series BUL1-L; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN6; medium temperature -10...+130°C; pressure range 0...6bar; DN 100mm; length 52mm
Technical specifications
| Pressure range | 0...6bar |
|---|---|
| DN | 100 mm |
| Length | 52 mm |
| Pressure range | 0...6bar |
| DN | 100 mm |
| Length | 52 mm |
BUL1-100-DSE-L
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Absperrklappe mit Handhebel Serie BUL1-L · DE
Data sheet 434 KB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Butterfly valve with hand lever Series BUL1-L · EN
Data sheet 433 KB Updated 13/06/2026
