Butterfly valve with hand lever Series BUL1-L Store

Butterfly valve with hand lever BUL1-150-DSE-L

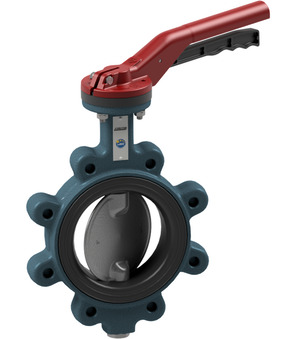

Name: Butterfly valve with hand lever BUL1-150-DSE-L
Brand: STASTO
SKU: BUL1-150-DSE-L
Price: 370.7 EUR
Availability: InStock

Butterfly valve with hand lever Series BUL1-L; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN6; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 150mm; Length 56mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 12.15 Kg
Short Itemnumber: BUL1150DSEL

butterfly valve with hand lever series BUL1-L; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN6; medium temperature -10...+130°C; pressure range 0...6bar; DN 150mm; length 56mm

370,70 € 370.7 EUR 370,70 €

DN
- 150 mm
Length
- 56 mm

This combination does not exist.

Availability:

Add to cart

DN	150 mm
Length	56 mm

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

Data Sheets

Data sheet_Butterfly valve with hand lever Series BUL1-L_EN.pdf

Download

ZIP

Datenblätter

Datenblatt_Absperrklappe mit Handhebel Serie BUL1-L_DE.pdf

Download

BUL1-150-DSE-B x 1.0

Butterfly valve with bare shaft BUL1-150-DSE-B

Butterfly valve with bare shaft Series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0…6bar; Nominal flange pressure PN6

Add to Cart
