Butterfly valve with hand lever Series BUL1-L Store

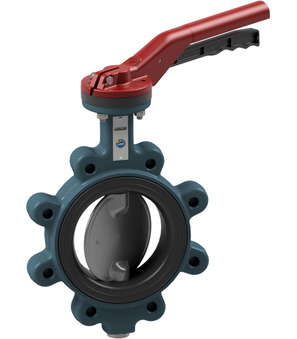

Butterfly valve with hand lever BUL1-080-DSE-L

Name: Butterfly valve with hand lever BUL1-080-DSE-L
Brand: STASTO
SKU: BUL1-080-DSE-L
Price: 243.5 EUR
Availability: InStock

Butterfly valve with hand lever Series BUL1-L; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN6; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 80mm; Length 46mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 3.35 Kg
Short Itemnumber: BUL1080DSEL

butterfly valve with hand lever series BUL1-L; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN6; medium temperature -10...+130°C; pressure range 0...6bar; DN 80mm; length 46mm

243,50 € 243.5 EUR 243,50 €

DN
- 80 mm
Length
- 46 mm

This combination does not exist.

Availability:

Add to cart

DN	80 mm
Length	46 mm

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

Data Sheets

Data sheet_Butterfly valve with hand lever Series BUL1-L_EN.pdf

Download

ZIP

Datenblätter

Datenblatt_Absperrklappe mit Handhebel Serie BUL1-L_DE.pdf

Download
