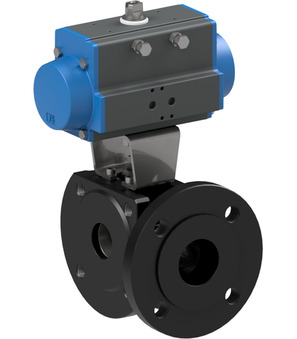

Flanged ball valve with pneumatic actuator BAUA-025-CITV-D0

Flanged ball valve with pneumatic actuator BAUA-025-CITV-D0

Flanged ball valve with pneumatic actuator Series BAMA, BAUA; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16bar; Nominal diameter 25mm; DN ball 20mm; Length 46mm; Actuator PAD052; Ball T

Flanschkugelhahn mit Druckluftdrehantrieb Serie BAMA, BAUA
Flanschkugelhahn mit Druckluftdrehantrieb Serie BAMA, BAUA
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 3.02 Kg
Short Itemnumber: BAUA025CITVD0
https://www.stasto.eu/web/image/product.template/87257/image_1920?unique=d975ddd

Flanged ball valve with pneumatic actuator Series BAMA, BAUA; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16bar; Nominal diameter 25mm; DN ball 20mm; Length 46mm; Actuator PAD052; Ball T

703,20 € 703.2 EUR 703,20 €

Not Available For Sale

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • DN ball
  • Connector size
  • Ball
  • Design
  • Voltage
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 25 mm
DN ball 20 mm
Length 46 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16bar
DN 25 mm
DN ball 20 mm
Length 46 mm
Ball T

BAUA-025-CITV-D0

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Flanged ball valve 776001-25
776001-25 x 1.0 Pcs
Flanged ball valve 776001-25
Flanged ball valve Series 776000, 776001; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Nominal diameter 25mm; DN ball 20mm; Length 46mm; Ball T
Pneumatic actuator PAD052
PAD052 x 1.0 Pcs
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
RI3001 x 1.0 Pcs
RI3001
Mounting bracket; F05/F03-F04; 11-8
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4603
RI4603
Diameter
52 mm
RI4617
RI4617
Diameter
52 mm
RI4645
RI4645
Diameter
52 mm
