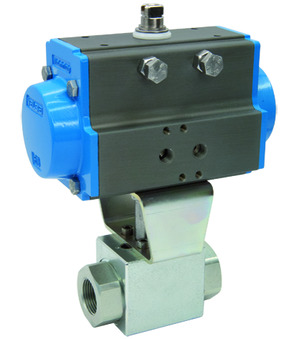

Ball valve with pneumatic actuator BAH1-005-UCPN-D0A

Name: Ball valve with pneumatic actuator BAH1-005-UCPN-D0A
Brand: STASTO
SKU: BAH1-005-UCPN-D0A
Price: 352.5 EUR
Availability: InStock

Ball valve with pneumatic actuator Series BAH1; ATEX zone 0 and 20; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 3/4"; Nominal diameter 20mm; Pressure range 0...400bar; Length 96mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.37 Kg
Short Itemnumber: BAH1005UCPND0A

352,50 € 352.5 EUR 352,50 €

Female thread
- G 3/4"
DN
- 20 mm
Length
- 96 mm
Design
- ATEX
Pressure range
- 0...400 bar
Actuator
- PAD063

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	G 3/4"
DN	20 mm
Length	96 mm
design
Design	ATEX
pressure
Pressure range	0...400 bar
characteristics
Actuator	PAD063

BKH-G3/4-20 11231-B0FA x 1.0

BKH-G3/4-20 11231-B0FA

High pressure ball valve; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -10...+100°C; G 3/4"; Nominal diameter 20mm; Pressure range 0-400bar; Length 96mm; Drilled for mounting an actuator F04/SW14

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart

04806007007 x 1.0

04806007007

Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030

Add to Cart

A4/337/99 x 1.0

A4/337/99

Bolt; 1.4305; Diameter 25mm; Height of the bolt 46mm; Male square 14mm; Height of the male square 17mm; Female square 14mm; Height of the female square 13mm
