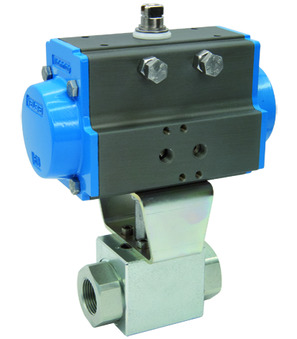

Ball valve with pneumatic actuator BAH1-004-UCPN-D0A

Name: Ball valve with pneumatic actuator BAH1-004-UCPN-D0A
Brand: STASTO
SKU: BAH1-004-UCPN-D0A
Price: 356.5 EUR
Availability: InStock

Ball valve with pneumatic actuator Series BAH1; ATEX zone 0 and 20; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 85mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.57 Kg
Short Itemnumber: BAH1004UCPND0A

356,50 € 356.5 EUR 356,50 €

Female thread
- G 1/2"
DN
- 13 mm
Length
- 85 mm
Design
- ATEX
Pressure range
- 0...500 bar
Actuator
- PAD063

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	G 1/2"
DN	13 mm
Length	85 mm
design
Design	ATEX
pressure
Pressure range	0...500 bar
characteristics
Actuator	PAD063

BKH-G1/2-13 11231-B0FA x 1.0

BKH-G1/2-13 11231-B0FA

High pressure ball valve; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -10...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0-500bar; Length 85mm; Drilled for mounting an actuator F03/SW9

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart

04805007001 x 1.0

04805007001

Mounting bridge; Zinc plated steel; Flange 1: F03/32mm; Flange 2: F05; Height 50mm

Add to Cart

A4/457/04 x 1.0

A4/457/04

Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
