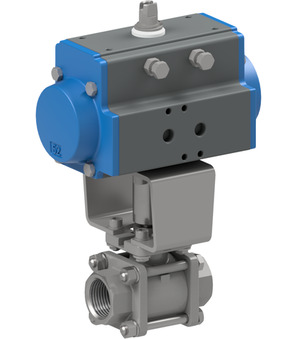

BAC1-008-SSTV-D0-EP0S11

BAC1-008-SSTV-D0-EP0S11

BAC1-008-SSTV-D0
ball valve with pneumatic actuator series BAC1; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/2"; nominal diameter 40mm; pressure range 0-25bar; length 116mm; actuator PAD063
EP0S11
mounted positioner; digital I/P-positioner, 4-20 mA; actuator PAD052-270

Intrastat No.: 84818081
Country of origin: France
Weight: 6.336 Kg
Short Itemnumber: BAC1008SSTVD0EP0S11
https://www.stasto.eu/web/image/product.template/233627/image_1920?unique=94b97ec

BAC1-008-SSTV-D0
ball valve with pneumatic actuator series BAC1; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/2"; nominal diameter 40mm; pressure range 0-25bar; length 116mm; actuator PAD063
EP0S11
mounted positioner; digital I/P-positioner, 4-20 mA; actuator PAD052-270

3.023,00 € 3023.0 EUR 3.023,00 €

price on request

  • Diameter
  • Connection
  • Male thread
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Max. inlet pressure
  • Filter element
  • Flow rate at 6.3bar/Δp=1bar

This combination does not exist.

Availability:
Contact Us

Share

dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
Female thread RP 1 1/2"
DN 40 mm
Length 116 mm
function
Function Double acting
pressure
Pressure range 0...25 bar
characteristics
Actuator PAD063
