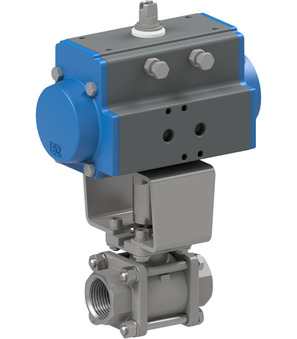

Ball valve with pneumatic actuator Series BAC1

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Kugelhahn mit Druckluftdrehantrieb Serie BAC1 Kugelhahn mit Druckluftdrehantrieb Serie BAC1 Kugelhahn mit Druckluftdrehantrieb Serie BAC1
Grundversion
Female thread DN Length Pressure range Function Switch type Contact material Material of case Voltage Design Diameter Connection Type Sequence
RP 1/4" 8 mm 57 mm 0...64 bar - - - - - - - - BAC1-002-SSTV-D0 25100000
RP 1/4" 8 mm 57 mm 0...64 bar - - - - - - - - BAC1-002-SSTV-D0B 25100002
RP 3/8" 10 mm 57 mm 0...64 bar - - - - - - - - BAC1-003-SSTV-D0 25100012
RP 3/8" 10 mm 57 mm 0...64 bar - - - - - - - - BAC1-003-SSTV-D0B 25100014
RP 1/2" 15 mm 65 mm 0...64 bar - - - - - - - - BAC1-004-SSTV-D0 25100023
RP 1/2" 15 mm 65 mm 0...64 bar - - - - - - - - BAC1-004-SSTV-D0B 25100025
RP 3/4" 20 mm 76 mm 0...40 bar - - - - - - - - BAC1-005-SSTV-D0 25100035
RP 1" 25 mm 92 mm 0...40 bar - - - - - - - - BAC1-006-SSTV-D0 25100044
RP 1 1/4" 32 mm 106 mm 0...25 bar - - - - - - - - BAC1-007-SSTV-D0 25100056
RP 1 1/2" 40 mm 116 mm 0...25 bar - - - - - - - - BAC1-008-SSTV-D0 25100064
RP 2" 50 mm 136 mm 0...25 bar - - - - - - - - BAC1-009-SSTV-D0 25100075
RP 2 1/2" 65 mm 153 mm 0...16 bar - - - - - - - - BAC1-010-SSTV-D0 25100085
RP 3" 80 mm 180 mm 0...16 bar - - - - - - - - BAC1-011-SSTV-D0 25100095
RP 4" 100 mm 217 mm 0...16 bar - - - - - - - - BAC1-012-SSTV-D0 25100105
Varianten
Female thread DN Length Pressure range Function Switch type Contact material Material of case Voltage Design Diameter Connection Type Sequence
RP 1/4" 8 mm 57 mm 0...64 bar - - - - 230V/50-60Hz Standard - - BAC1-002-SSTV-D0B-ABS51-C001-22-C002-31-6 25100003
RP 1/4" 8 mm 57 mm 0...64 bar - - - - 230V/50-60Hz With integrated LED-yellow and VDR - - BAC1-002-SSTV-D0B-ABS51-C001-22-C002-31-LV-1 25100004
RP 1/4" 8 mm 57 mm 0...64 bar - - - - 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - BAC1-002-SSTV-D0B-ABS51-C001-22-C002-31-LVCV20-1 25100005
RP 1/4" 8 mm 57 mm 0...64 bar - - - - 24VDC / 48V/50-60Hz - 8 mm - 25100006
RP 1/4" 8 mm 57 mm 0...64 bar - - - - 24VDC / 48V/50-60Hz Standard - - BAC1-002-SSTV-D0B-ABS51-C001-03-C002-31-6 25100007
RP 1/4" 8 mm 57 mm 0...64 bar - - - - 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR - - BAC1-002-SSTV-D0B-ABS51-C001-03-C002-31-LV-2 25100008
RP 1/4" 8 mm 57 mm 0...64 bar - - - - 24VDC / 48V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - BAC1-002-SSTV-D0B-ABS51-C001-03-C002-31-LVCV20-2 25100009
RP 1/4" 8 mm 57 mm 0...64 bar - Crouzet 831613 Silver-nickel Plastic 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR - - BAC1-002-SSTV-D0B-ABS51-C001-03-C002-31-LV-2-EB0X01 25100010
RP 3/8" 10 mm 57 mm 0...64 bar - - - - 230V/50-60Hz Standard - - BAC1-003-SSTV-D0B-ABS51-C001-22-C002-31-6 25100015
RP 3/8" 10 mm 57 mm 0...64 bar - - - - 230V/50-60Hz With integrated LED-yellow and VDR - - BAC1-003-SSTV-D0B-ABS51-C001-22-C002-31-LV-1 25100016
RP 3/8" 10 mm 57 mm 0...64 bar - - - - 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - BAC1-003-SSTV-D0B-ABS51-C001-22-C002-31-LVCV20-1 25100017
RP 3/8" 10 mm 57 mm 0...64 bar - - - - 24VDC / 48V/50-60Hz Standard - - BAC1-003-SSTV-D0B-ABS51-C001-03-C002-31-6 25100018
RP 3/8" 10 mm 57 mm 0...64 bar - - - - 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR - - BAC1-003-SSTV-D0B-ABS51-C001-03-C002-31-LV-2 25100019
RP 3/8" 10 mm 57 mm 0...64 bar - - - - 24VDC / 48V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - BAC1-003-SSTV-D0B-ABS51-C001-03-C002-31-LVCV20-2 25100020
RP 3/8" 10 mm 57 mm 0...64 bar - Crouzet 831613 Silver-nickel Aluminum - - - - BAC1-003-SSTV-D0B-EB0X04YA 25100021
RP 1/2" 15 mm 65 mm 0...64 bar - - - - 230V/50-60Hz Standard - - BAC1-004-SSTV-D0B-ABS51-C001-22-C002-31-6 25100026
RP 1/2" 15 mm 65 mm 0...64 bar - - - - 230V/50-60Hz With integrated LED-yellow and VDR - - BAC1-004-SSTV-D0B-ABS51-C001-22-C002-31-LV-1 25100027
RP 1/2" 15 mm 65 mm 0...64 bar - - - - 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - BAC1-004-SSTV-D0B-ABS51-C001-22-C002-31-LVCV20-1 25100028
RP 1/2" 15 mm 65 mm 0...64 bar - - - - 24VDC / 48V/50-60Hz Standard - - BAC1-004-SSTV-D0B-ABS51-C001-03-C002-31-6 25100029
RP 1/2" 15 mm 65 mm 0...64 bar - - - - 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR - - BAC1-004-SSTV-D0B-ABS51-C001-03-C002-31-LV-2 25100030
RP 1/2" 15 mm 65 mm 0...64 bar - - - - 24VDC / 48V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - BAC1-004-SSTV-D0B-ABS51-C001-03-C002-31-LVCV20-2 25100031
RP 1/2" 15 mm 65 mm 0...64 bar - Crouzet 831613 Silver-nickel Plastic - - - - BAC1-004-SSTV-D0B-EB0X01 25100032
RP 1/2" 15 mm 65 mm 0...64 bar NO PNP P&F NBN3-F25F-E8 - Plastic - - - - BAC1-004-SSTV-D0B-EB0X13 25100033
RP 3/4" 20 mm 76 mm 0...40 bar - - - - 230V/50-60Hz Standard - - BAC1-005-SSTV-D0-ABS51-C001-22-C002-31-6 25100036
RP 3/4" 20 mm 76 mm 0...40 bar - - - - 230V/50-60Hz With integrated LED-yellow and VDR - - BAC1-005-SSTV-D0-ABS51-C001-22-C002-31-LV-1 25100037
RP 3/4" 20 mm 76 mm 0...40 bar - - - - 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) - - BAC1-005-SSTV-D0-ABS51-C001-22-C002-31-LVCV20-1 25100038
