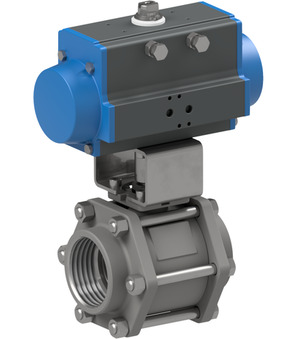

Ball valve with pneumatic actuator BA859-212-D0

Name: Ball valve with pneumatic actuator BA859-212-D0
Brand: STASTO
SKU: BA859-212-D0
Price: 1374.6 EUR
Availability: InStock

Ball valve with pneumatic actuator Series BA859-D0; Female thread; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAD085

Intrastat No.: 84818081
Country of origin: Italy
Weight: 12.83 Kg
Short Itemnumber: BA859212D0

ball valve with pneumatic actuator series BA859-D0; female thread; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 21/2"; nominal diameter 65mm; pressure range 0-16bar; length 153mm; actuator PAD085

1.374,60 € 1374.6 EUR 1.374,60 €

Female thread
- RP 2 1/2"
DN
- 65 mm
Length
- 153 mm
Pressure range
- 0...16 bar
Actuator
- PAD085

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	RP 2 1/2"
DN	65 mm
Length	153 mm
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAD085

BA859-212-L x 1.0

Ball valve made of stainless steel BA859-212-L

Ball valve made of stainless steel Series BA859; Full bore; Three-parts type; Female thread; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FKM; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0...16bar; Length 153mm

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart

RI3003 x 1.0
