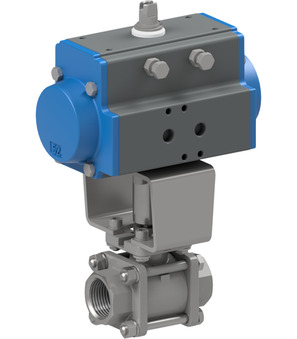

Ball valve with pneumatic actuator BA859-20-D0-01

Name: Ball valve with pneumatic actuator BA859-20-D0-01
Brand: STASTO
SKU: BA859-20-D0-01
Price: 989.5 EUR
Availability: InStock

Ball valve with pneumatic actuator Series BA859-D0-01; Female thread; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm; Actuator PAD085; Mounting kits Stainless steel

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.429 Kg
Short Itemnumber: BA85920D001

ball valve with pneumatic actuator series BA859-D0-01; female thread; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-25bar; length 136mm; actuator PAD085; mounting kits stainless steel

989,50 € 989.5 EUR 989,50 €

Female thread
- RP 2"
DN
- 50 mm
Length
- 136 mm
Pressure range
- 0...25 bar
Actuator
- PAD075

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	RP 2"
DN	50 mm
Length	136 mm
pressure
Pressure range	0...25 bar
characteristics
Actuator	PAD075

BA859-20-L x 1.0

BA859-20-L

Ball valve made of stainless steel Series BA859; Full bore; Three-parts type; Female thread; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FKM; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0...25bar; Length 136mm

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart

ATE0705 x 1.0
