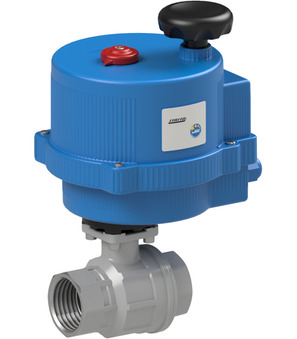

Ball valve with electric actuator BA770-12-CL-01

Name: Ball valve with electric actuator BA770-12-CL-01
Brand: STASTO
SKU: BA770-12-CL-01
Price: 995.6 EUR
Availability: InStock

Ball valve with electric actuator; with control ball V 60°; Internal thread; Housing, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+120°C; RP 1/2"; DN 15mm; Print area 0...140bar; Installation length 66mm; Operating time 8s; Tension 24VAC/DC; with integrated positioner 4-20mA/0-10V; Compensation hole on the input side

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.93 Kg
Short Itemnumber: BA77012CL01

995,60 € 995.6 EUR 995,60 €

Female thread
- RP 1/2"
DN
- 15 mm
Length
- 67 mm
Voltage
- 24VAC/DC
Pressure range
- 0...64 bar
Actuator
- VB015L24
Operating time
- 10 s

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	RP 1/2"
DN	15 mm
Length	67 mm
Electrical key figures
Voltage	24VAC/DC
pressure
Pressure range	0...64 bar
characteristics
Actuator	VB015L24
Operating time	10 s

BA770-12-L-01 x 1.0

Ball valve made of stainless steel BA770-12-L-01

Stainless steel ball valve; full passage; two-part; Internal thread; Housing, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Print area 0…140bar; Installation length 66mm; Compensation hole on the input side; with control ball V 60°

Add to Cart

VB030-L-P0S x 1.0

Electrical actuator VB030-L-P0S

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67

Add to Cart

RI3782 x 1.0
