STASTO Allgemeine Preisliste (EUR)
BA738-25-S0-3C01

BA738-25-S0-3C01

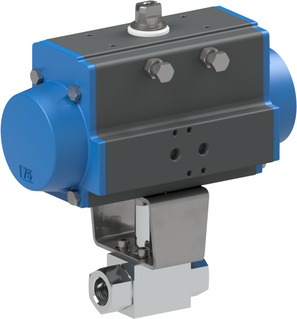

ball valve with pneumatic actuator series BA738; housing AISI 316Ti; ball Nitronic-50; seals PEEK/FKM (AED)/PTFE-special version; medium temperature -40...+85°C; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+85°C; ; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness; connection DN25; PN400 according to DIN400; pressure range 0...400bar; actuator PAS1255

Intrastat No.: 84818081
Country of origin: Germany
Short Itemnumber: BA73825S03C01
https://www.stasto.eu/web/image/product.template/176829/image_1920?unique=ca83db0

ball valve with pneumatic actuator series BA738; housing AISI 316Ti; ball Nitronic-50; seals PEEK/FKM (AED)/PTFE-special version; medium temperature -40...+85°C; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+85°C; ; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness; connection DN25; PN400 according to DIN400; pressure range 0...400bar; actuator PAS1255

4.902,90 € 4902.9 EUR 4.902,90 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...350 bar
Connection DN25
DN 25 mm
Length 113 mm
All specifications (6)
Pressure range 0...350 bar
Connection DN25
DN 25 mm
Length 113 mm
Female thread G 1"
Brand STASTO
BA738-25-B-3C01 x 1.0 Pcs
BA738-25-B-3C01
high pressure ball valve; flange DN25; PN400 according to DIN400; drilled for mounting an actuator; housing AISI 316Ti; ball Nitronic-50; seals PEEK/FKM (AED)/PTFE-special version; medium temperature -40...+85°C; nominal diameter 25mm; pressure range 0...400bar; flange ISO5211 F05; square 14mm; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness
Pneumatic actuator PAS1255
PAS1255 x 1.0 Pcs
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
