BA243-34-D0

Name: BA243-34-D0
Brand: STASTO
SKU: BA243-34-D0
Price: 843.4 EUR
Availability: InStock

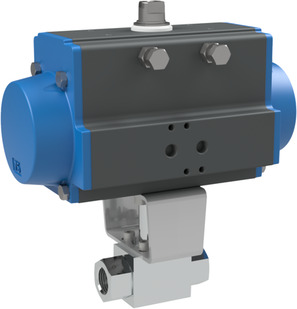

ball valve with pneumatic actuator; female thread; body, ball AISI 316Ti; seals PEEK/FKM; with erosion protection ring; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+200°C; for gases; G 3/4"; nominal diameter 20mm; pressure range 0…350bar; length 95mm; actuator PAD085

Intrastat No.: 84818081
Country of origin: Germany
Weight: 5.95 Kg
Short Itemnumber: BA24334D0

843,40 € 843.4 EUR 843,40 €

Female thread
- G 3/4"
DN
- 20 mm
Length
- 95 mm
Pressure range
- 0...350 bar
Actuator
- PAD085

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	G 3/4"
DN	20 mm
Length	95 mm
pressure
Pressure range	0...350 bar
characteristics
Actuator	PAD085

BA243-34-B x 1.0

BA243-34-B

high pressure ball valve; female thread; body, ball AISI 316Ti; seals PEEK/FKM; medium temperature -20...+200°C; G 3/4"; nominal diameter 20mm; pressure range 0...500bar; length 95mm; Flansch ISO5211 F05; Vierkant 14mm

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart

04808007001 x 1.0

04808007001

Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm

Add to Cart

A4/338/99 x 1.0

A4/338/99

Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
