BA738-10-S0-3C
SK-CVT3-15-NC-007
SK-CVT3-15-NC-007
164,30 €
164,30 €
BA738-25-S0-3C01
BA738-25-S0-3C01
price on request

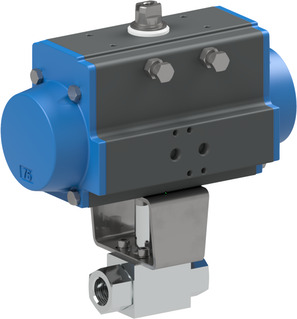

BA738-10-S0-3C

ball valve with pneumatic actuator series BA738; housing AISI 316Ti; ball Nitronic-50; seals PEEK/FKM (AED)/PTFE-special version; medium temperature -40...+85°C; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+85°C; ; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness; G 1"; nominal diameter 25mm; pressure range 0...400bar; length 130,7mm; actuator PAS1255

Intrastat No.: 84818081
Country of origin: Germany
Short Itemnumber:BA73810S03C
https://www.stasto.eu/web/image/product.template/176794/image_1920?unique=6bd270b

ball valve with pneumatic actuator series BA738; housing AISI 316Ti; ball Nitronic-50; seals PEEK/FKM (AED)/PTFE-special version; medium temperature -40...+85°C; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+85°C; ; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness; G 1"; nominal diameter 25mm; pressure range 0...400bar; length 130,7mm; actuator PAS1255

999.999,00 € 999999.0 EUR 999.999,00 €

price on request

  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1"
DN 25 mm
Length 113 mm
pressure
Pressure range 0...350 bar
characteristics
Actuator PAS1255
BA738-10-B-3C x 1.0
BA738-10-B-3C
high pressure ball valve; female thread; drilled for mounting an actuator; housing AISI 316Ti; ball Nitronic-50; seals PEEK/FKM (AED)/PTFE-special version; medium temperature -40...+85°C; G 1"; nominal diameter 25mm; pressure range 0...400bar; length 130,7mm; flange ISO5211 F05; square 14mm; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness
Add to Cart
Pneumatic actuator PAS1255
PAS1255 x 1.0
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
