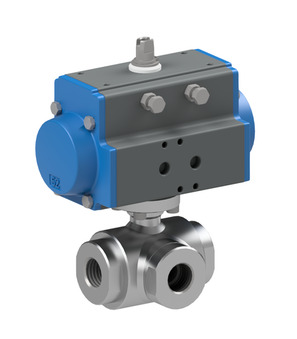

Ball valve with pneumatic actuator BA542-34-S0-A
Ball valve with pneumatic actuator Series BA541-S0-A, BA542-S0-A; ATEX II 2 G/D c T4; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; G 3/4"; Nominal diameter 20mm; Pressure range 0…100bar; Length 92mm; Actuator PAS0855; Ball L
Country of origin: Austria
Weight: 4.51 Kg
Short Itemnumber: BA54234S0A
ball valve with pneumatic actuator series BA541-S0-A, BA542-S0-A; ATEX II 2 G/D c T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator ATEX II 2 G/D c T6; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 3/4"; nominal diameter 20mm; pressure range 0…100bar; length 92mm; actuator PAS0855; ball L
| dimension | |
|---|---|
| Female thread | G 3/4" |
| DN | 20 mm |
| Length | 92 mm |
| Designs | |
| Ball | L |
| design | |
| Design | ATEX |
| pressure | |
| Pressure range | 0...100 bar |
| characteristics | |
| Actuator | PAS0855 |
