BA542-114-S0-A

Price.

1.281,30 €
STASTO Allgemeine Preisliste (EUR)
Ball valve with pneumatic actuator Series BA541-S0-A, BA542-S0-A Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA541-S0-A, BA542-S0-A
  6. BA542-114-S0-A

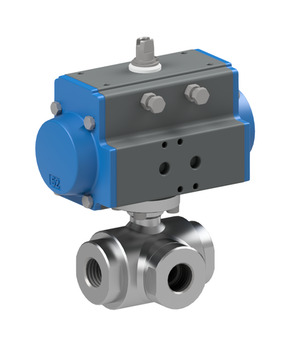

BA542-114-S0-A

BA542-114-S0-A

Ball valve with pneumatic actuator Series BA541-A, BA542-A; ATEX II 2 G/D T4; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Single acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; G 11/4"; Nominal diameter 32mm; Pressure range 0…64bar; Length 118mm; Actuator PAS1005; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 11.75 Kg
Short Itemnumber:BA542114S0A
https://www.stasto.eu/web/image/product.template/238146/image_1920?unique=94b97ec

ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 11/4"; nominal diameter 32mm; pressure range 0…64bar; length 118mm; actuator PAS1005; ball L

1.281,30 € 1281.3 EUR 1.281,30 €

price on request

  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Ball
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1 1/4"
DN 32 mm
Length 118 mm
Designs
Ball L
design
Design ATEX
pressure
Pressure range 0...64 bar
characteristics
Actuator PAS1005
Ball valve made of stainless steel BA542-114-B-A
BA542-114-B-A x 1.0
Ball valve made of stainless steel BA542-114-B-A
Ball valve made of stainless steel Series BA541-B-A, BA542-A; ATEX II 2 G/D T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 11/4"; Nominal diameter 32mm; Pressure range 0...64bar; Length 118mm; Ball L; Flange ISO5211 F07; Square 17mm
Add to Cart
Pneumatic actuator PAS1005
PAS1005 x 1.0
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
