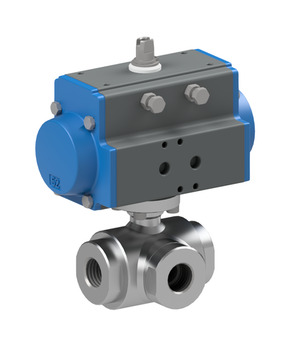

BA355-12-D0-A

BA355-12-D0-A

Ball valve with pneumatic actuator Series BA355, BA388; ATEX II 2 G/D T4; 3-way-type; Full bore; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE-metal reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+200°C; G 1/2"; Nominal diameter 15mm; Pressure range 0…100bar; Length 82mm; Actuator PAD052; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.657 Kg
Short Itemnumber: BA35512D0A
https://www.stasto.eu/web/image/product.template/213871/image_1920?unique=94b97ec

ball valve with pneumatic actuator series BA355, BA388; ATEX II 2 G/D T4; 3-way-type; full bore; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE-metal reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+200°C; G 1/2"; nominal diameter 15mm; pressure range 0…100bar; length 82mm; actuator PAD052; ball T

681,80 € 681.8 EUR 681,80 €

price on request

  • Female thread
  • DN
  • Length
  • Ball
  • Design
  • Pressure range
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1/2"
DN 15 mm
Length 82 mm
Designs
Ball T
design
Design ATEX
pressure
Pressure range 0...40 bar, 0...100 bar
characteristics
Actuator PAD052
Ball valve made of stainless steel BA355-12-B-A
BA355-12-B-A x 1.0
Ball valve made of stainless steel BA355-12-B-A
Ball valve made of stainless steel Series BA355, BA388; ATEX II 2 G/D T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE-metal reinforced/FKM; Sealing on three ports; Medium temperature -20...+200°C; G 1/2"; Nominal diameter 15mm; Pressure range 0...100bar; Length 82mm; Ball T; Flange ISO5211 F03; Square 9mm
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
Add to Cart
04805007001 x 1.0
04805007001
Mounting bridge; Zinc plated steel; Flange 1: F03/32mm; Flange 2: F05; Height 50mm
Add to Cart
IV/00001/07 x 1.0
IV/00001/07
Bolt; 1.4305; Diameter 20mm; Height of the bolt 48mm; Male square 11mm; Height of the male square 14mm; Female square 9mm; Height of the female square 8mm
