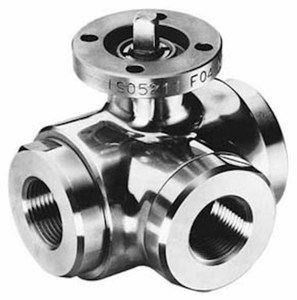

Ball valve made of stainless steel BA355-12-B-A
Ball valve made of stainless steel Series BA355, BA388; ATEX II 2 G/D T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE-metal reinforced/FKM; Sealing on three ports; Medium temperature -20...+200°C; G 1/2"; Nominal diameter 15mm; Pressure range 0...100bar; Length 82mm; Ball T; Flange ISO5211 F03; Square 9mm
Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.217 Kg
Short Itemnumber: BA35512BA
Country of origin: Italy
Weight: 1.217 Kg
Short Itemnumber: BA35512BA
ball valve made of stainless steel series BA355, BA388; ATEX II 2 G/D T4; bare shaft; 3-way-type; female thread; full bore; body AISI 316L polished; ball AISI 316L; seals PTFE-metal reinforced/FKM; sealing on three ports; medium temperature -20...+200°C; G 1/2"; nominal diameter 15mm; pressure range 0...100bar; length 82mm; ball T; flange ISO5211 F03; square 9mm
| dimension | |
|---|---|
| Female thread | G 1/2" |
| DN | 15 mm |
| Length | 82 mm |
| Square | 9 mm |
| Designs | |
| Flange ISO5211 | F03 |
| Ball | T |
| design | |
| Design | ATEX |
| pressure | |
| Pressure range | 0...100 bar |
No spare parts are available for this product.
