BA131-80-PL

Name: BA131-80-PL
Brand: STASTO
SKU: BA131-80-PL
Price: 2251.4 EUR
Availability: InStock

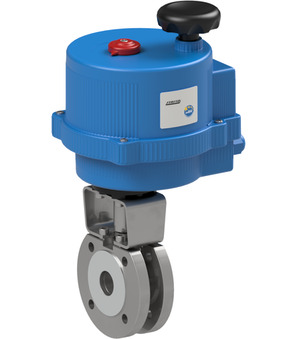

flanged ball valve with electrical actuator series BA131-PL; flange PN16; body, ball AISI 316; seals PTFE/EPDM; medium temperature -20...+160°C; DN 80mm; pressure range 0-16bar; length 122mm; actuator VB110-L; operating time 27s; voltage 24VAC/DC; accumulator for safety position NC

Intrastat No.: 84818081
Country of origin: Italy

Weight: 19.98 Kg
Short Itemnumber: BA13180PL

2.251,40 € 2251.4 EUR 2.251,40 €

excl. tax

DN
- 80 mm
Length
- 122 mm
Voltage
- 24VAC/DC
Pressure range
- 0...16 bar
Actuator
- VB110L
Operating time
- 27 s
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...16 bar
DN	80 mm
Length	122 mm
Operating time	27 s

All specifications (6)

Spezifikationen
Spare Parts

Pressure range	0...16 bar
DN	80 mm
Length	122 mm
Operating time	27 s
Voltage	24VAC/DC
Brand	STASTO

BA131-80-L x 1.0 Pcs

Flanged ball valve BA131-80-L

Flanged ball valve Series BA131; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/EPDM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Length 122mm

VB110-L-AKKU x 1.0 Pcs

Electrical actuator VB110-L-AKKU

Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Function NC

RI3003 x 1.0 Pcs
