BA131-80-0L

Name: BA131-80-0L
Brand: STASTO
SKU: BA131-80-0L
Price: 2001.3 EUR
Availability: InStock

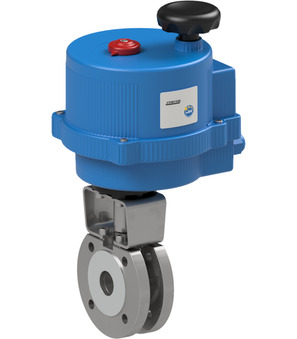

flanged ball valve with electrical actuator series BA131-0L; flange PN16; body, ball AISI 316; seals PTFE/EPDM; medium temperature -20...+160°C; DN 80mm; pressure range 0-16bar; length 122mm; actuator VB110-L; operating time 27s; voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 19.38 Kg
Short Itemnumber: BA131800L

2.001,30 € 2001.3 EUR 2.001,30 €

DN
- 80 mm
Length
- 122 mm
Voltage
- 24VAC/DC
Pressure range
- 0...16 bar
Actuator
- VB110L
Operating time
- 27 s

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	80 mm
Length	122 mm
Electrical key figures
Voltage	24VAC/DC
pressure
Pressure range	0...16 bar
characteristics
Actuator	VB110L
Operating time	27 s

BA131-80-L x 1.0

Flanged ball valve BA131-80-L

Flanged ball valve Series BA131; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/EPDM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Length 122mm

Add to Cart

VB110-L x 1.0

Electrical actuator VB110-L

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67

Add to Cart

RI3003 x 1.0
