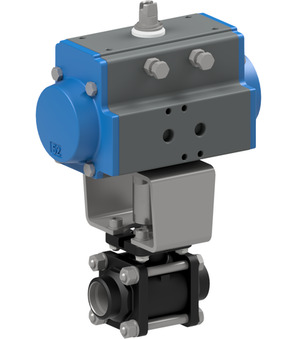

Ball valve with pneumatic actuator BA078-15-D0B

Ball valve with pneumatic actuator BA078-15-D0B

Ball valve with pneumatic actuator Series BA078-D0B/D01; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator, Oversized; Control pressure 5,5...8bar; Medium temperature -10...+198°C; Nominal diameter 15mm; Pressure range Steam 0...15bar; Length 65mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.713 Kg
Short Itemnumber:BA07815D0B
https://www.stasto.eu/web/image/product.template/138652/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series BA078-D0B/D01; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator, oversized; control pressure 5,5...8bar; medium temperature -10...+198°C; nominal diameter 15mm; pressure range steam 0...15bar; length 65mm; actuator PAD052

347,50 € 347.5 EUR 347,50 €

price on request

  • Diameter
  • Male thread
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Pressure range Steam
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 15 mm
Length 65 mm
pressure
Pressure range 0...64 bar
Pressure range Steam 0...15 bar
characteristics
Actuator PAD052

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA078-D0B/D01_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA078-D0B/D01_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BA078-D0B/D01_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA078-D0B/D01_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA078-D0B/D01_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA078-D0B/D01_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA078-D0B/D01_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA078-D0B/D01_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA078-D0B/D01_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA078-D0B/D01_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA078-D0B/D01_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA078-D0B/D01_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA078-D0B/D01_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA078-D0B/D01_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA078-D0B/D01_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA078-D0B/D01_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA078-D0B/D01_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BA078-D0B/D01_SV.pdf
Download
Ball valve made of steel BA078-15-L
BA078-15-L x 1.0
Ball valve made of steel BA078-15-L
Ball valve made of steel Series BA078-L; For steam; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -10...+198°C; Nominal diameter 15mm; Length 65mm
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
