Ball valve with pneumatic actuator BA066-12-D0

Price.

700,60 €
Ball valve with pneumatic actuator Series BA066 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA066
  6. BA066-12-D0
Ball valve with pneumatic actuator BA066-12-D0
Ball valve with pneumatic actuator BA066-12-D0-A
Ball valve with pneumatic actuator BA066-12-D0-A
price on request
Hexagon head screw SW002-M6X16-I
Hexagon head screw SW002-M6X16-I
0,20 €
0,20 €

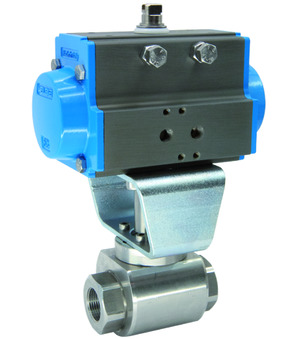

Ball valve with pneumatic actuator BA066-12-D0

Ball valve with pneumatic actuator Series BA066; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For liquids; G 1/2"; Nominal diameter 13mm; Pressure range 0…400bar; Length 85mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Germany
Weight: 2.87 Kg
Short Itemnumber:BA06612D0
https://www.stasto.eu/web/image/product.template/157924/image_1920?unique=807a26c

ball valve with pneumatic actuator series BA066; female thread; body, ball AISI 316Ti; seals PEEK/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; for liquids; G 1/2"; nominal diameter 13mm; pressure range 0…400bar; length 85mm; actuator PAD063

700,60 € 700.6 EUR 700,60 €

price on request

  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/2"
DN 13 mm
Length 85 mm
pressure
Pressure range 0...400 bar
characteristics
Actuator PAD063

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA066_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA066_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA066_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA066_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA066_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA066_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA066_SRLATIN.pdf
Download
RKH-G1/2-13-4465-DFA x 1.0
RKH-G1/2-13-4465-DFA
High pressure ball valve; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; For liquids; Medium temperature -20...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0-400bar; For mounting an actuator
Add to Cart
Pneumatic actuator PAD063
PAD063 x 1.0
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
Add to Cart
04806007007 x 1.0
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
Add to Cart
A4/457/04 x 1.0
A4/457/04
Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
