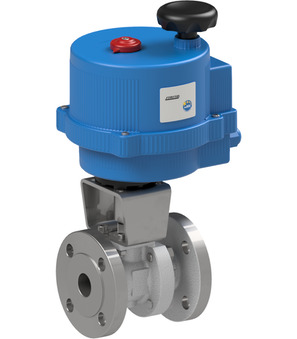

BA051-80-0H-3C

Flanged ball valve Series BA051-A3C; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Nominal diameter 80mm; Pressure range 0...16bar; Flange PN16; Length 180mm

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67

Mounting bracket F10-F07/F10, Bolt 17-18
