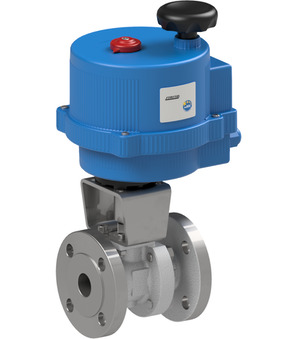

Flanged ball valve with electrical actuator BA051-65-0H-3C

Flanged ball valve with electrical actuator BA051-65-0H-3C

Flanged ball valve with electrical actuator Series 8E053; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; DN 65mm; Pressure range 0...16bar; Flange PN16; Length 170mm; Operating time 27s; Voltage 100-240VAC; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Weight: 13.48 Kg
Short Itemnumber: BA051650H3C
https://www.stasto.eu/web/image/product.template/176511/image_1920?unique=baeb489

flanged ball valve with electrical actuator series 8E053; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; medium temperature -20...+160°C; DN 65mm; pressure range 0...16bar; flange PN16; length 170mm; operating time 27s; voltage 100-240VAC; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

2.139,20 € 2139.2 EUR 2.139,20 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Flange
  • Voltage
  • Pressure range
  • Actuator
  • Operating time
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 65 mm
Flange PN16
Length 170 mm
All specifications (7)
Pressure range 0...16 bar
DN 65 mm
Flange PN16
Length 170 mm
Operating time 27 s
Voltage 100-240VAC
Brand STASTO
BA051-65-LLD-A3C
BA051-65-LLD-A3C x 1.0 Pcs
BA051-65-LLD-A3C
Flanged ball valve; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; Nominal diameter 65mm; Pressure range 0...16bar; Flange PN16; Length 170mm
Electrical actuator VB110-H
VB110-H x 1.0 Pcs
Electrical actuator VB110-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
RI3522 x 1.0 Pcs
RI3522
Mounting bracket F07-F07, Bolt 17-14
Accessory Products
Flanged ball valve 760000-65
760000-65
Flanged ball valve 760000-65
DN
65 mm
Flange
PN16
Design
ATEX
Pressure range
0...16 bar
BA779-65-L-A3C
BA779-65-L-A3C
DN
65 mm
Flange
PN16
Design
ATEX
Pressure range
0...16 bar
Brand
STASTO
