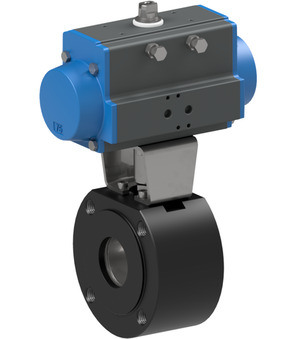

Flanged ball valve with pneumatic actuator BA045-20-D0

Price.

446,00 €
Flanged ball valve with pneumatic actuator Series BA045-D Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Flanged ball valve with pneumatic actuator Series BA045-D
  6. BA045-20-D0
Flanged ball valve with pneumatic actuator BA045-20-D0
Ball valve with electrical actuator BA047-125-0L
Ball valve with electrical actuator BA047-125-0L
5.063,20 €
5.063,20 €
Flanged ball valve with pneumatic actuator BA045-40-D0
Flanged ball valve with pneumatic actuator BA045-40-D0
633,80 €
633,80 €

Flanged ball valve with pneumatic actuator BA045-20-D0

Flanged ball valve with pneumatic actuator Series BA045; Flange PN40; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...40bar; Nominal diameter 20mm; Length 40mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.86 Kg
Short Itemnumber:BA04520D0
https://www.stasto.eu/web/image/product.template/134939/image_1920?unique=a049910

flanged ball valve with pneumatic actuator series BA045; flange PN40; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...40bar; nominal diameter 20mm; length 40mm; actuator PAD063

446,00 € 446.0 EUR 446,00 €

price on request

  • DN
  • Length
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 20 mm
Length 40 mm
characteristics
Actuator PAD063
Flanged ball valve 720008-20
720008-20 x 1.0
Flanged ball valve 720008-20
Flanged ball valve Series 720008; Flange PN40, Full bore; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 20mm; Length 40mm
Add to Cart
Pneumatic actuator PAD063
PAD063 x 1.0
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
Add to Cart
Accessories
