Ball valve with pneumatic actuator BA036-20-S0-01

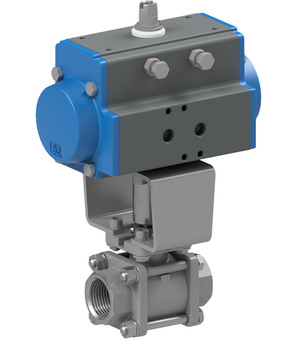

Ball valve with pneumatic actuator BA036-20-S0-01

ball valve with pneumatic actuator series BA036-S0; for steam; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; pressure range steam 0...14bar; medium temperature -20...+198°C; RP 2"; nominal diameter 50mm; length 136mm; actuator PAS1005 V-ball 90°

Intrastat No.: 84818081
Country of origin: Italy
Weight: 11.43 Kg
Short Itemnumber: BA03620S001
https://www.stasto.eu/web/image/product.template/228264/image_1920?unique=f96ddcc

ball valve with pneumatic actuator series BA036-S0; for steam; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; pressure range steam 0...14bar; medium temperature -20...+198°C; RP 2"; nominal diameter 50mm; length 136mm; actuator PAS1005 V-ball 90°

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Female thread
  • DN
  • Length
  • Design
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range steam 0...14bar
Female thread RP 2"
DN 50 mm
Length 136 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range steam 0...14bar
Female thread RP 2"
DN 50 mm
Length 136 mm
Design ATEX

BA036-20-S0-01

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA036-20-L-02
BA036-20-L-02 x 1.0 Pcs
Ball valve made of stainless steel BA036-20-L-02
Ball valve made of stainless steel Series BA036; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0…15bar; Medium temperature -20...+198°C; RP 2"; Nominal diameter 50mm; Length 136mm; V-Ball 90°
Pneumatic actuator PAS1005
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
RI3034 x 1.0 Pcs
RI3034
Mounting bracket; F07/F05-F05; Bolt 17-10
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4605
RI4605
Diameter
75 mm
RI4619
RI4619
Diameter
75 mm
RI4647
RI4647
Diameter
75 mm
