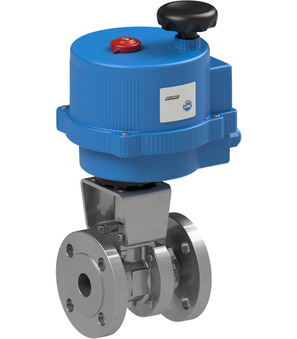

Flanged ball valve with electrical actuator BA044-150-0C-01

Name: Flanged ball valve with electrical actuator BA044-150-0C-01
Brand: STASTO
SKU: BA044-150-0C-01

Flanged ball valve with electrical actuator Series 8E054; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; DN 150mm; Pressure range 0-16bar; Flange PN16; Length 350mm; Operating time 43s; Voltage 230VAC; Electrical actuator With SIL 2

Intrastat No.: 84818081
Country of origin: Germany
Short Itemnumber: BA0441500C01

flanged ball valve with electrical actuator series 8E054; length according to EN558−1R27; body zinc plated steel; ball AISI 304; seals PTFE/Graphoil/FKM; medium temperature -10...+160°C; DN 150mm; pressure range 0-16bar; flange PN16; length 350mm; operating time 43s; voltage 230VAC; electrical actuator with SIL 2

On request

DN
- 150 mm
Length
- 350 mm
Flange
- PN16
Voltage
- 100-240VAC
Pressure range
- 0...16 bar
Actuator
- VB350H
Operating time
- 50 s

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
DN	150 mm
Length	350 mm
Flange	PN16
Electrical key figures
Voltage	100-240VAC
pressure
Pressure range	0...16 bar
characteristics
Actuator	VB350H
Operating time	50 s

760001-150 x 1.0

Flanged ball valve 760001-150

Flanged ball valve Series 760001; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 150mm; Pressure range 0-16bar; Flange PN16; Length 350mm

Add to Cart

PSQ503-CC43-Q22-01 x 1.0

PSQ503-CC43-Q22-01

Electrical actuator; Suitable for Valves with 90° operation; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 500Nm; Operating time 43s; Flange ISO5211-F10; Square diagonal 22mm; Voltage 230V-50/60Hz; Protection class IP67; With SIL2

Add to Cart

RI3553 x 1.0
