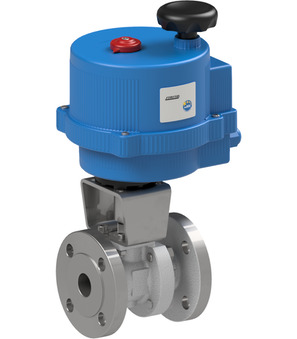

Flanged ball valve with electrical actuator BA764-50-0H

Name: Flanged ball valve with electrical actuator BA764-50-0H
Brand: STASTO
SKU: BA764-50-0H
Price: 1339.2 EUR
Availability: InStock

Flanged ball valve with electrical actuator Series BA764; Length According to EN558−1R27; Full bore; Body Steel A352-LCB; Ball 1.4301; Ball seal PTFE-Graphite reinforced; Stem seal Graphoil/PTFE/FKM-Peroxide; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 50mm; Flange PN40; Length 150mm; Operating time 9s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA764500H

flanged ball valve with electrical actuator series BA764; length according to EN558−1R27; full bore; body steel A352-LCB; ball AISI 304; ball seal PTFE-graphite reinforced; stem seal Graphoil/PTFE/FKM-Peroxide; pressure range steam 0...15bar; medium temperature -20...+198°C; nominal diameter 50mm; flange PN40; length 150mm; operating time 9s; voltage 100-240VAC

1.339,20 € 1339.2 EUR 1.339,20 €

DN
- 50 mm
Length
- 150 mm
Flange
- PN40
Voltage
- 100-240VAC
Pressure range
- 0...40 bar
Actuator
- VB060H
Operating time
- 9 s

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	50 mm
Length	150 mm
Flange	PN40
Electrical key figures
Voltage	100-240VAC
pressure
Pressure range	0...40 bar
characteristics
Actuator	VB060H
Operating time	9 s

BA764-50-LLD-A x 1.0

BA764-50-LLD-A

Flanged ball valve Series BA764-A; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Steel A352-LCB; Ball 1.4301; Ball seal PTFE-Graphite reinforced; Stem seal Graphoil/PTFE/FKM-Peroxide; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; With locking device; Nominal diameter 50mm; Flange PN40; Length 150mm

Add to Cart

VB060-H x 1.0

Electrical actuator VB060-H

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100-240VAC; Protection class IP67

Add to Cart

RI4039 x 1.0
